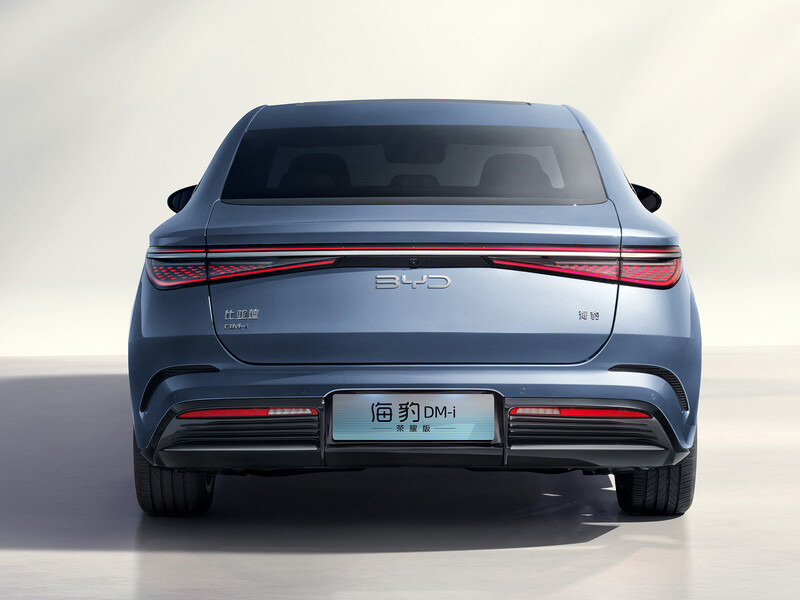

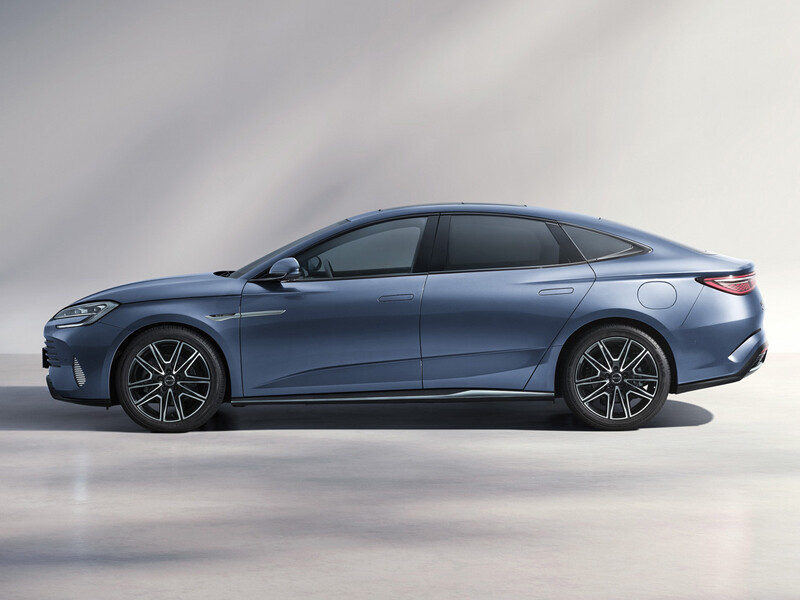

BYD Seal

The 550km range version should be equipped with a single motor, with a maximum power of 150kW, which is the lowest configuration model; The 650km range version corresponds to a front and rear dual motor, with the front motor having a maximum power of 160kW and the rear motor having a maximum power of 200kW. The acceleration time for 100 kilometers is only 3.8 seconds; The 700km endurance version should also be equipped with a single motor, with a maximum power of 230kW.

Model features

In terms of power, the car offers three different versions, each equipped with a 150 kW rear wheel drive motor, a 230 kW rear wheel drive motor, and a front 160 kW+rear 230 kW dual drive motor. The four-wheel drive version accelerates from 0 to 100 km/h in 3.8 seconds, making it the fastest accelerating model in BYD's history.

The seal is built on the BYD e-platform 3.0 technology platform and will adopt a series of BYD's latest technologies, including battery body integration (CTB), eight in one electric powertrain, heat pump system, and boost fast charging. It can improve the overall torsional stiffness and dynamic response of the vehicle, providing users with a better experience in handling and safety. In addition, the rear wheel drive/four-wheel drive power architecture, front double wishbone+rear five link chassis suspension and other configurations mean that the seal has extremely strong sports attributes.

Basic parameters

Model	Seal 2024 Honor Edition DM-i 1.5L121km Elite	Seal 2024 Honor Edition DM-i 1.5T200km Flagship	Seal 2024 Honor Edition 700km Performance Edition	Seal 2024 Honor Edition 650km 4WD Performance Edition
Level	Mid-Size	Mid-Size	Mid-Size	Mid-Size
Energy type	Plug-in Hybrid	Plug-in Hybrid	Pure electric	Pure electric
Time to market	2024	2024	2024	2024
NEDC pure electric range (km)	121	200	-	-
WLTC pure electric mileage (km)	100	160	-	-
CLTC pure electric range (km)	-	-	700	650
Maximum power (kW)	-	-	230	390
Transmission	E-CVT continuously variable transmission	E-CVT continuously variable transmission	Electric vehicle single speed gearbox	Electric vehicle single speed gearbox
Body structure	4-door 5-seater sedan	4-door 5-seater sedan	4-door 5-seater sedan	4-door 5-seater sedan
L * W * H (mm)	498018901495	498018901495	480018751460	480018751460
Official 0-100km/h acceleration (s)	8.2	7.9	5.9	3.8
Maximum speed (km/h)	180	180	180	180
WLTC comprehensive fuel consumption (L/100km)	1.08	0.84	-	-
Minimum State of Charge Fuel Consumption (L/100km)	4.8	5.3	-	-
Electricity equivalent fuel consumption (L/100km)	-	-	1.47	1.65
Vehicle warranty	6 years or 150000 kilometers	6 years or 150000 kilometers	6 years or 150000 kilometers	6 years or 150000 kilometers
Curb weight (kg)	1830	2020	2015	2150
Maximum Full Load Mass (kg)	2205	2395	2390	2525

Body of car

L(mm)	4980	4980	4800	4800
W(mm)	1890	1890	1875	1875
H(mm)	1495	1495	1460	1460
Wheelbase (mm)	2900	2900	2920	2920
Front wheelbase (mm)	1640	1640	1620	1620
Rear wheelbase (mm)	1650	1650	1625	1625
Approach angle (°)	13	13	13	13
Departure angle (°)	15	15	14	14
Body structure	notchback	notchback	notchback	notchback
Door opening method	Side hung door	Side hung door	Side hung door	Side hung door
Number of car doors	4	4	4	4
Seating capacity	5	5	5	5
Fuel tank volume (L)	50	45	-	-

Engine

Engine model	BYD472QA	BYD476ZQC	-	-
Displacement (L)	1.5	1.5	0	0
Air intake form	Naturally aspirated	Naturally aspirated	-	-
Engine layout	Transverse	Transverse	-	-
Number of cylinders	4	4	-	-
Maximum power (kW)	81	102	230	390
Maximum torque (N · m)	135	231	360	670
Maximum net power (kW)	78	96	-	-
Energy type	Plug-in Hybrid	Plug-in Hybrid	Pure electric	Pure electric
ROZ	No. 92	No. 92	-	-
Fuel supply method	Mpi	Direct injection	-	-
Cylinder head material	Aluminum alloy	Aluminum alloy	-	-
Cylinder body material	Aluminum alloy	Aluminum alloy	-	-

Motor

Front motor model	TZ220XYE	TZ220XYE	-	YS210XYA
Rear motor model	-	-	TZ200XYC	TZ200XYC
Motor type	Permanent magnet/synchronous	Permanent magnet/synchronous	Permanent magnet/synchronous	Front communication asynchronous and rear permanent magnet synchronous
Total power of electric motor (kW)	145	160	230	390
Total torque of electric motor (N · m)	325	325	360	670
Maximum power of front motor (kW)	145	160	-	160
Maximum torque of front motor (N · m)	325	325	-	310
Maximum power of rear motor (kW)	-	-	230	230
Maximum torque of rear motor (N · m)	-	-	360	360
Number of driving motors	single motor	single motor	single motor	Dual motor
Motor layout	Front	Front	Rear	Front+Rear
Type	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery	lithium iron phosphate battery
Battery cooling method	Liquid cooling	Liquid cooling	Liquid cooling	Liquid cooling
Battery energy (kWh)	17.6	30.7	82.5	82.5
Power consumption per 100 kilometers (kWh/100km)	-	-	13	14.6
San Dian's first owner's warranty policy	The first car owner has no limit on age/mileage (the exemption clause is subject to official regulations)	The first car owner has no limit on age/mileage (the exemption clause is subject to official regulations)	-	-

Quality and After-sale Assurance



The company is committed to providing customers with a variety of high-performance, competitively priced multi fuel vehicles, plug-in hybrid, and pure electric engine vehicles



Our products are very popular worldwide. Over the last decade, our products have been exported to more than 60 countries and regions all over the world, including the Netherlands, Israel, Italy, Russia, the United States, Mexico, India, Colombia, South and Southeast Asia, Africa etc. Our competitive products benefit dozens of traders, distributors and retailers around the world.



Our company has been providing customers with super fast transportation speed for a long time (it only takes 7-10 days from Wuxi or Qingdao to the Xinjiang port, and 3-4 working days for port customs declaration and shipment to the destination), as well as comprehensive services and thoughtful after-sales service

Oversea customers

We have exported to many countries, including Asia, Europe, South America, North America, Africa, Oceania, etc. At the same time, we also have our distributors in many countries. The after-sales guarantee system is as perfect as possible, and the series of accessories can be free of charge. As a gift, please feel free to contact us if you want to know!

Shipment and Transportation

Minimum order quantity: 1 unit

Payment completed, China delivery time 15 days to Bishkek

30 days to Russia

FAQ

Q: I have never ridden a electric car. Are Electric car easy to ride?

A: Electric car are remarkably easy to ride, and most people need only a few minutes to become comfortable on them.

Q: Are electric car safe to ride on city streets?

A: All electric car are for street use. In many urban neighborhoods, you may find your electric car navigates narrow streets and passages more easily than your car. Because your electric car is a relatively small vehicle, you should always drive cautiously and defensively.

Q: How do I recharge my electric car?

A: Simple-just plug it in! Each new car comes with a small charging device. Even if you have used up almost all your charge, in a mere 6-8 hours, your electric car has a full charge and is ready to go. Charge it at home overnight, or charge it at the office while you work! The charger is small enough to easily fit in a backpack or in the rear storage compartment.

Q: What is your packing and payment?

A: Wooden case or iron frame or as per customer’s specific request.

T/T, L/C, West Union, PayPal and etc.

Q: What is your shipping type and delivery time?

A: By sea

1 set sample can be shipped by LCL.

Quantity order would be shipped by FCL.

Normally delivery time within 15-25days after receiving your deposit or L/C.

Payment completed, China delivery time 15 days to Bishkek

30 days to Russia
