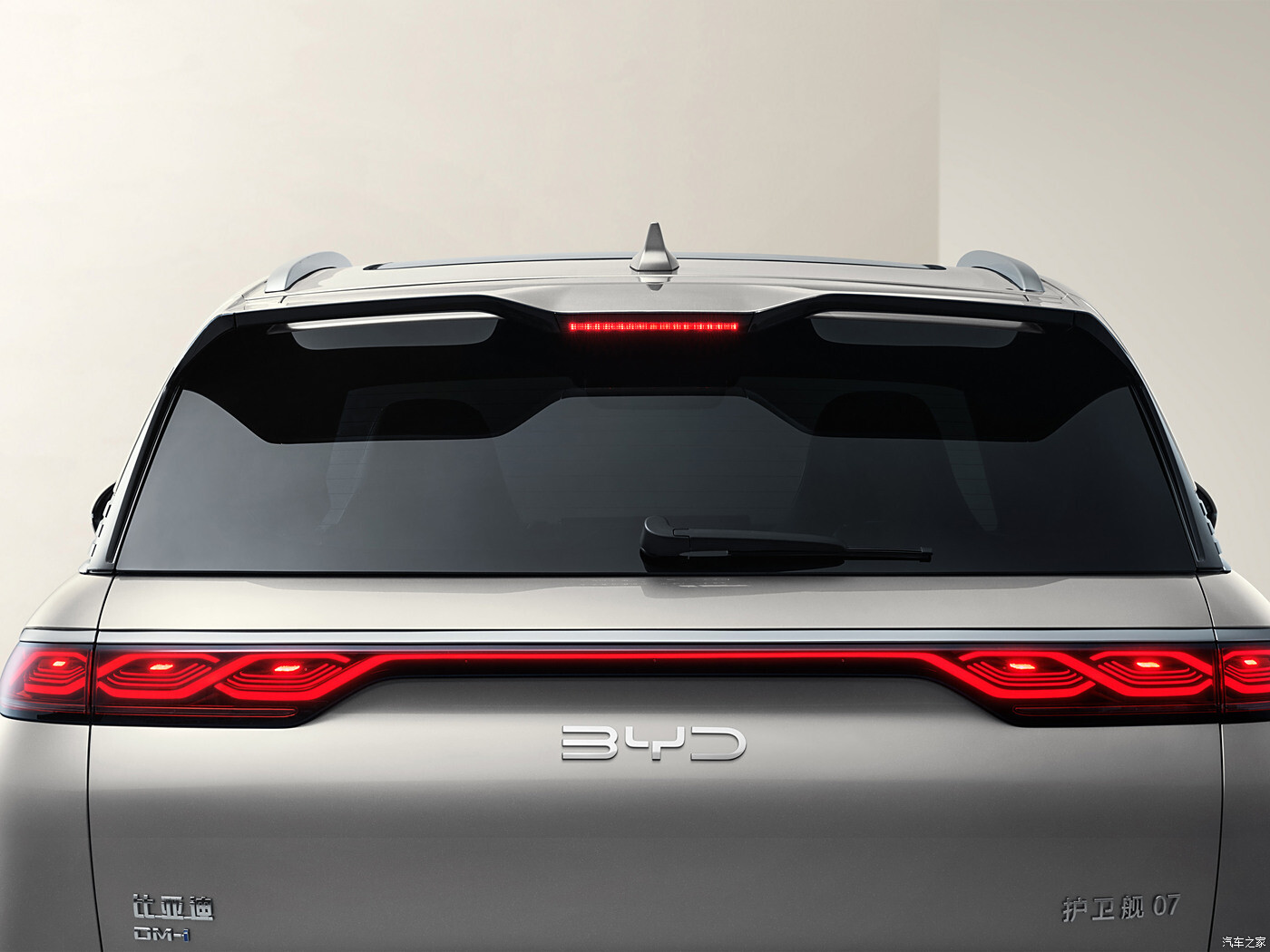

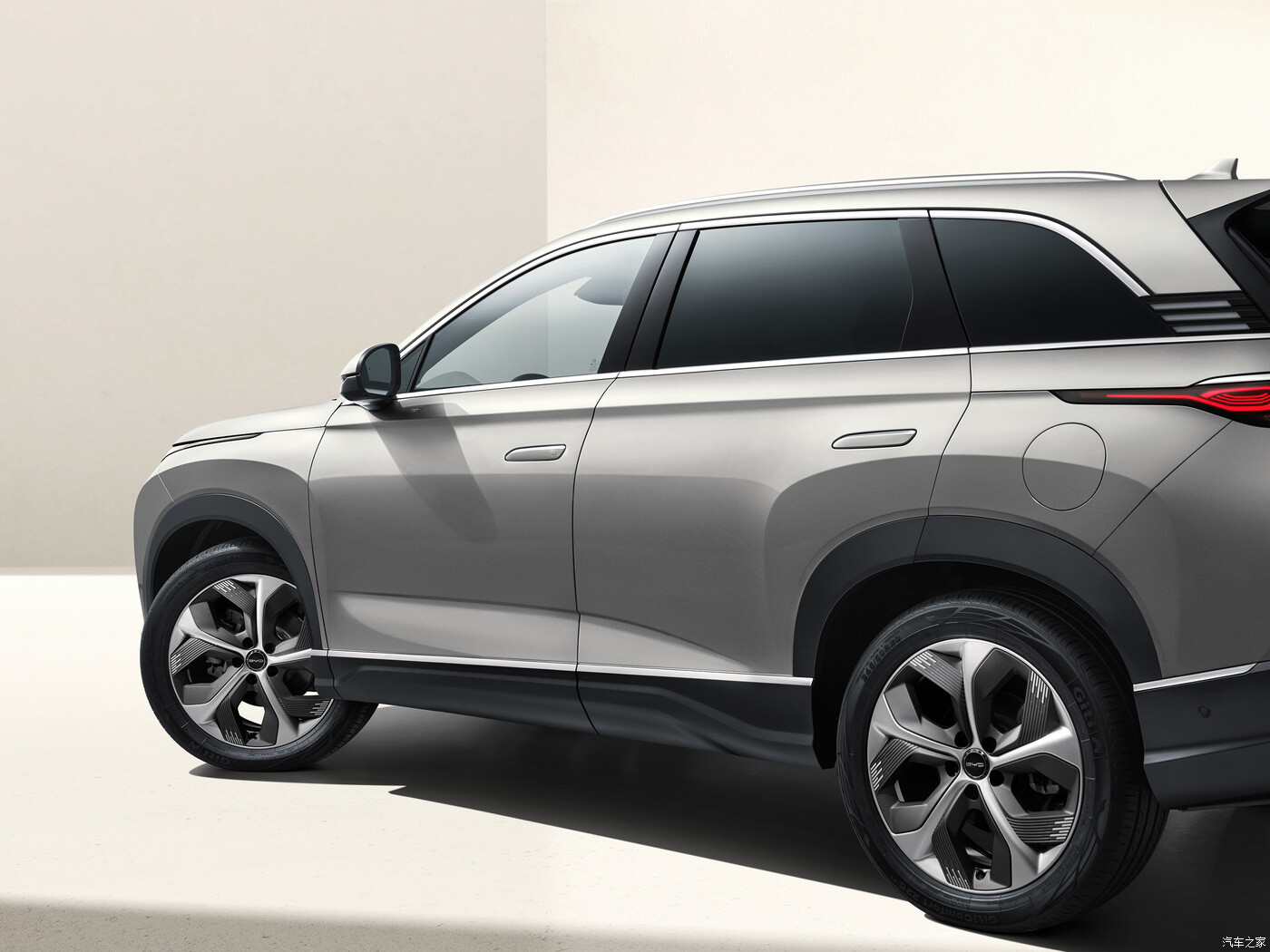

BYD Frigate 07
Location:

BYD Frigate 07
The frigate 07 is equipped with a DM-i plug-in hybrid system, a 1.5T engine with a maximum power of 102kW, a front/rear motor peak power of 145kW/150kW, and an iron phosphate blade battery. The estimated pure electric range is 200km. In addition, the frigate 07 will also launch a performance-focused DM-P model, which has a maximum power of 295kw and a peak torque of 656Nm at the front and rear motors, and an acceleration time of 4.7 seconds from 0 to 100km/h.
Submit

Model features

The frigate 07 is equipped with a DM-i plug-in hybrid system, a 1.5T engine with a maximum power of 102kW, a front/rear motor peak power of 145kW/150kW, and an iron phosphate blade battery. The estimated pure electric range is 200km. In addition, the frigate 07 will also launch a performance-focused DM-P model, which has a maximum power of 295kw and a peak torque of 656Nm at the front and rear motors, and an acceleration time of 4.7 seconds from 0 to 100km/h.In terms of size, the new car is 4820mm long, 1920mm wide and 1750mm high, with a wheelbase of 2820mm. Compared with BYD Tang, the length is shortened by 50mm, the width is shortened by 20mm, and the height is increased by 30mm. In terms of wheelbase, the two models are exactly the same, both of which are 2820mm.



Basic parameters
Model

07 2024 Honor Edition DM-i100KM Elite

07 2024 Honor Edition

DM-i 100KM Luxury Edition

07 2024 Honor Edition

DM-i 205KM Flagship Model

07 2024 Honor Edition DM-p 175KM 4WD Flagship Model

07 2023 DM-i

100KM Luxury

LevelMid-size SUVMid-size SUVMid-size SUVMid-size SUVMid-size SUV
Energy typePlug-in hybridPlug-in hybridPlug-in hybridPlug-in hybridPlug-in hybrid
Time to market20242024202420242023
NEDC pure electric range (km)100100205175100
WLTC pure electric range (km)828217015082
Maximum power (kW)-----
Maximum torque (N . m)-----
TransmissionE-CVT continuously variable transmissionE-CVT continuously variable transmissionE-CVT continuously variable transmission
E-CVT continuously variable transmission
Body structure5-door 5-seater SUV5-door 5-seater SUV5-door 5-seater SUV5-door 5-seater SUV5-door 5-seater SUV
L * W * H (mm)4820*1920*17504820*1920*17504820*1920*17504820*1920*17504820*1920*1750
Official 0-100km/h acceleration (s)8.58.58.94.78.5
Maximum speed (km/h)180180180180185
Electricity equivalent fuel consumption (L/100km)2.432.432.52.582.43
Vehicle warranty6 years or 150000 kilometers6 years or 150000 kilometers6 years or 150000 kilometers6 years or 150000 kilometers6 years or 150000 kilometers
Curb weight (kg)2047204721402270
2047
Maximum Full Load Mass (kg)24222422251526452422


Body of car

L(mm)48204820482048204820
W(mm)19201920192019201920
H(mm)17501750175017501750
Wheelbase (mm)28202820282028202820
Front wheelbase (mm)16401640164016401640
Rear wheelbase (mm)16401640164016401640
Approach angle (°)1919191919
Departure angle (°)2222222222
Body structureSUVSUVSUVSUVSUV
Door opening methodSwing doorSwing doorSwing doorSwing doorSwing door
Number of car doors55555
Seating capacity55555
Fuel tank capacity (L)6060606060
Rear trunk volume (L)------


Engine

Engine modelBYD476ZQCBYD476ZQCBYD476ZQCBYD476ZQCBYD476ZQC
Displacement (L)1.51.51.51.51.5
Air intake formInhale naturallyInhale naturallyInhale naturallyInhale naturallyInhale naturally
Engine layoutSidewaysSidewaysSidewaysSidewaysSideways
Number of cylinders44444
Maximum power (kW)102102102102102
Maximum torque (N · m)231231231231231
Maximum net power (kW)9696969696
Energy typePlug-in HybridPlug-in HybridPlug-in HybridPlug-in HybridPlug-in Hybrid
ROZNo. 92No. 92No. 92No. 92No. 92
Fuel supply methodDirect InjectionDirect InjectionDirect InjectionDirect InjectionDirect Injection
Cylinder head materialAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloy
Cylinder body materialAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloy




Motor

Front motor modelTZ220XYGTZ220XYGTZ220XYGTZ220XYGTZ220XYG
Rear motor model-----
Motor typePermanent magnet/synchronousPermanent magnet/synchronousPermanent magnet/synchronousPermanent magnet/synchronousPermanent magnet/synchronous
Total power of electric motor (kW)145145145295145
Total torque of electric motor (N . m)197197197410197
Maximum power of front motor (kW)145145145145145
Maximum torque of front motor (N . m)316316316316316
Maximum power of rear motor (kW)---150-
Maximum torque of rear motor (N . m)---340-
Battery energy (kWh)18.318.336.836.818.3
Number of driving motorssingle motorsingle motorsingle motorDual motorssingle motor
Motor layoutFrontFrontFrontFront + rearFront
Battery Typelithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate batterylithium iron phosphate battery
Battery cooling methodLiquid CoolingLiquid CoolingLiquid CoolingLiquid CoolingLiquid Cooling
Power consumption per 100 kilometers (kWh/100km)21.521.5

22.1

22.821.5
San Dian's first owner's warranty policyThe first owner has no limit on years/mileage liability exemption clause is subject to official regulations)The first owner has no limit on years/mileage liability exemption clause is subject to official regulations)The first owner has no limit on years/mileage liability exemption clause is subject to official regulations)The first owner has no limit on years/mileage liability exemption clause is subject to official regulations)The first owner has no limit on years/mileage liability exemption clause is subject to official regulations)


Quality and After-sale Assurance

The company is committed to providing customers with a variety of high-performance, competitively priced multi fuel vehicles, plug-in hybrid, and pure electric engine vehicles

Our products are very popular worldwide. Over the last decade, our products have been exported to more than 60 countries and regions  all over the world, including the Netherlands, Israel, Italy, Russia, the United States, Mexico, India, Colombia, South and Southeast Asia, Africa etc. Our competitive products benefit dozens of traders, distributors and retailers around the world.

Our company has been providing customers with super fast transportation speed for a long time (it only takes 7-10 days from Wuxi or Qingdao to the Xinjiang port, and 3-4 working days for port customs declaration and shipment to the destination), as well as comprehensive services and thoughtful after-sales service

Oversea customers

We have exported to many countries, including Asia, Europe, South America, North America, Africa, Oceania, etc. At the same time, we also have our distributors in many countries. The after-sales guarantee system is as perfect as possible, and the series of accessories can be free of charge. As a gift, please feel free to contact us if you want to know!

Shipment and Transportation

Minimum order quantity: 1 unit

Payment completed, China delivery time 15 days to Bishkek

30 days to Russia

FAQ

Q: I have never ridden a electric car. Are Electric car easy to ride?

A: Electric car are remarkably easy to ride, and most people need only a few minutes to become comfortable on them.



Q: Are electric car safe to ride on city streets?

A: All electric car are for street use. In many urban neighborhoods, you may find your electric car navigates narrow streets and passages more easily than your car. Because your electric car is a relatively small vehicle, you should always drive cautiously and defensively.



Q: How do I recharge my electric car?

A: Simple-just plug it in! Each new car comes with a small charging device. Even if you have used up almost all your charge, in a mere 6-8 hours, your electric car has a full charge and is ready to go. Charge it at home overnight, or charge it at the office while you work! The charger is small enough to easily fit in a backpack or in the rear storage compartment.



Q: What is your packing and payment?

A: Wooden case or iron frame or as per customer’s specific request.

T/T, L/C, West Union, PayPal and etc.



Q: What is your shipping type and delivery time?

A: By sea

   1 set sample can be shipped by LCL.

   Quantity order would be shipped by FCL.

   Normally delivery time within 15-25days after receiving your deposit or L/C.

   Payment completed, China delivery time 15 days to Bishkek

   30 days to Russia
